Fall Prevention Technologies has extensive expertise and experience to advise you on the correct Fall Arrest solutions for your work at height problem areas. IKAR is a well known brand from Germany and only supplies the best quality products to the market.

Our staff has been trained and licensed in Germany to supply, inspect, service and repair IKAR products. German quality tools are used to service and repair the IKAR products. IKAR offers low maintenance products of high quality.

Parts can be replaced where necessary, and you don’t necessarily replace the complete fall arrest block. Which is a huge saving to any company. Contact us and we will suggest the correct equipment to use to get the job done.

IKAR – Fall Arrest Block – Plastic Housing, Steel Cable Lifeline

Fall arrest block / inertia reel / retractable type fall arrester

  • EN360
  • Plastic housing with a galvanised steel cable lifeline
  • Swivel eye anchor attachment point
  • Additional testing against falls over edges
  • Aluminium double action hook on end of lifeline to EN362
VARIANTS
Lifeline
Length
3m
4.5m
6m
9m
12m
18m
24m
Approx.
Weight
1.9 Kg
2.1 Kg
2.5 Kg
3.2 Kg
4.9 Kg
6.3 Kg
7.3 Kg
Order
Code
HWPS3
HWPS4.5
HWPS6
HWPS9
HWPS12
HWPS18
HWPS24
IKAR – Fall Arrest Block – Aluminium Housing, Steel Cable Lifeline

Fall arrest block / inertia reel / retractable type fall arrester

  • EN360
  • Lightweight aluminium housing with a galvanised steel cable lifeline
  • Swivel eye anchor attachment point
  • Additional testing against falls over edges
  • Aluminium double action hook on end of lifeline to EN362
VARIANTS
Lifeline
Length
4.5m
6m
9m
12m
18m
24m
Approx.
Weight
2.7 Kg
3 Kg
3.7 Kg
5.4 Kg
6.9 Kg
8.4 Kg
Order
Code
HWS4.5
HWS6
HWS9
HWS12
HWS18
HWS24
IKAR – Fall Arrest Block – Aluminium Housing, Steel Cable Lifeline

Fall arrest block / inertia reel / retractable type fall arrester

  • EN360
  • Lightweight aluminium housing with a galvanised steel cable lifeline
  • Fixed handle anchor attachment point
  • Aluminium double action hook on end of lifeline to EN362
VARIANTS
Lifeline
Length
12m
18m
24m
33m
42m
65m
Approx.
Weight
5.9 Kg
9.5 Kg
13.5 Kg
18 Kg
27.2 Kg
38 Kg
Order
Code
H12
H18
H24
H30
H42
H65

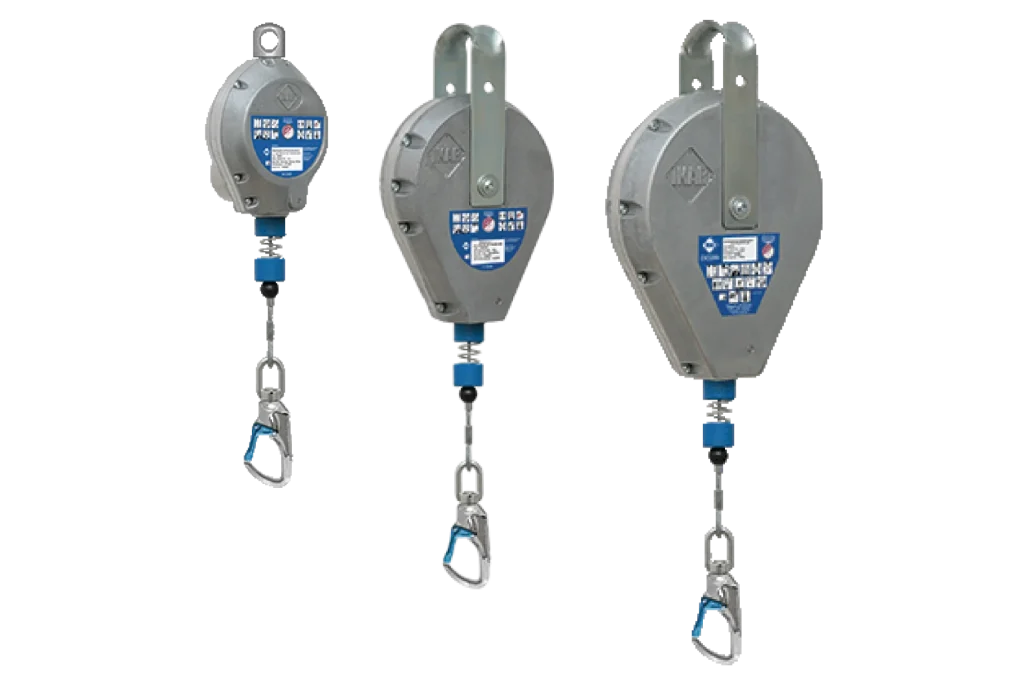

IKAR – Fall Arrest Block – Aluminium Housing, Steel Cable Lifeline

Fall arrest block / inertia reel / retractable type fall arrester with auto controlled descent

  • EN360 & EN341
  • Aluminium housing with a galvanised steel cable lifeline
  • Swivel eye anchorage attachment point
  • Aluminium double action hook on end of lifeline to EN362
VARIANTS
Lifeline
Length
9m
Approx.
Weight
5 Kg
Order
Code

HAS9
IKAR – Fall Arrest Recovery Block – Aluminium Housing, Steel Cable Lifeline

Fall arrest block / inertia reel / retractable type fall arrester, with built in two-way rescue/ recovery mechanism

  • EN360
  • Aluminium housing, with a galvanised steel cable lifeline
  • With release pin and two-way winding handle, to engage rescue/recovery mode
  • Fixed handle anchor attachment point
  • Attachment/connection handle or can be fitted to a davit or tripod via a bracket
  • Aluminium double action hook on end of lifeline to EN362

Fall arrest device with rescue lifting and lowering facility, equipped with a recovery mechanism operated by a device mounted handle.  After an arrested fall, or if the user becomes incapacitated at the bottom of a shaft, the recovery mechanism can easily be engaged by a second person to raise or lower the person to a place of safety.

The HRA can be anchored directly to a suitable anchorage point via the attachment handle or alternatively can be mounted on a rescue tripod.

The HRA is not suitable for use over a leading edge and has not been edge tested.

VARIANTS
Lifeline
Length
12m
18m
24m
30m
42m
65m
Approx.
Weight
8.3 Kg
11.5 Kg
16 Kg
21 Kg
40 Kg
43 Kg
Order
Code
HRA12
HRA18
HRA24
HRA30
HRA42
HRA65
IKAR – Controlled Descent Device – Aluminium Housing,
Kernmantle Rope Lifeline – Integral Hoisting Facility

Controlled descent device with integral hoisting facility and automatic speed regulator

  • EN341 and EN1496
  • 10mm kernmantle rope lifeline running through an aluminium housing
  • Descent Rate:  0.9m/sec
  • Swivel eye anchor attachment point – ø16mm
  • Aluminium double action hooks at both ends of the lifeline

The IKAR ABS3WH is the same as the ABS3W, but is also equipped with a rescue lifting and lowering facility using a crank wheel and a ratchet lock which can be pushed into place.

VARIANTS
Lifeline
Length
10m
20m
30m
40m
50m
60m
70m
80m
90m
100m
Approx.
Weight
2.6 Kg
3.3 Kg
4 Kg
4.7 Kg
5.4 Kg
6.1 Kg
6.8 Kg
7.5 Kg
8.2 Kg
8.9 Kg
Order
Code

ABS3WH10
ABS3WH20
ABS3WH30
ABS3WH40
ABS3WH50
ABS3WH60
ABS3WH70
ABS3WH80
ABS3WH90
ABS3WH100

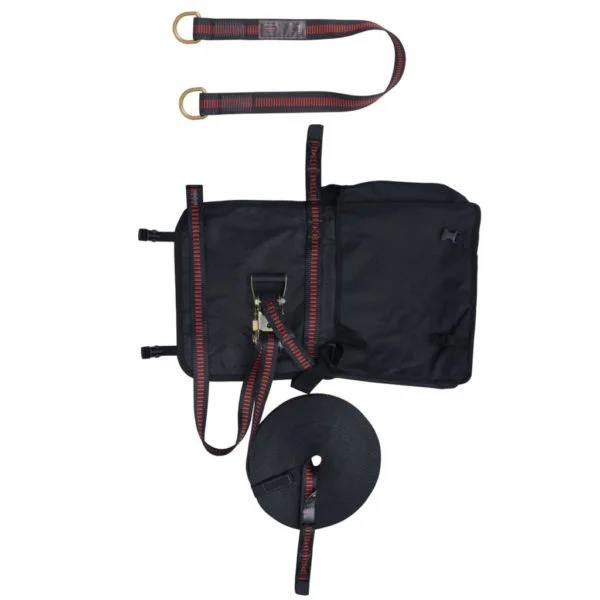

HLL1 – webbing temporary lifeline

  • 25mm low stretch water repellent
  • UV resistant polyester
  • webbing with wear indicator
  • Max 20m up to two persons
  • Simple to install via ratchet style tensioner
  • Record style bag keeps equipment protected
  • Lightweight and portable 1.3kg
  • Carbon steel zinc plated ratchet
  • Can be produced in a range of colours
  • 4000kg webbing

The HLL1 is a simple to install webbing system that can span between fixed anchorage points and provide a safe horizontal lifeline for up to two users. It comprises of 20m webbing, tensioner and bag as standard.

HLL125 – 25m fibre rope temporary lifeline

  • 16mm low stretch polyester double braid with wear indicator
  • Simple to install via RVTRope Vice Tensioner
  • Rope bag keeps equipment protected and stowed
  • Easy to take down and install with quick release arm
  • 24mm spanner flats allow additional tension reducing sag
  • Max 25m up to 4 persons
  • Pulley will slip to avoid over tensioning
  • Lightweight and portable 1.6kg (RVT only)
  • Alloy construction powder coated
  • Can be produced in a range of colours
  • 4950kg rope strength

A simple to install temporary fibre rope lifeline system that can span between fixed anchorage points and provide a safe horizontal anchorage for up to four users.

The HLL1 system’s configuration allows up to 25m of 16mm rope which comes with a swivel socket to reduce rope twist. It uses a RVT (Rope Vice Tensioner) to tension and lock system. The system can be tightened by hand or additional tension may be applied with a 24mm spanner, the pulley slips when MAX tension is achieved.

XCAPE PACK- introducing xcape pack

The Xcape Pack is a compact and simple fallen worker self-rescue kit, whose ease-of-use makes it the go-to choice in the energy and telecommunications industries.

The Xcape Pack uses traditional rope friction technology to create a lightweight, effective emergency escape and rescue device for up to two people. With a descent range of up to 50m, a max user weight of 200kg and a controlled descent speed of up to 2m/s, this is efficient self-rescue at its finest.

The pack for unparalleled user-friendliness: made from heat-treated and anodised aluminium and stainless steel with polyester roping, it weighs in at only 2.1kg. It fits into a small hip pack that connects to a harness waist belt, or can alternatively be discreetly stowed.

Gotcha – rescue kit

Gotcha is the original pre-assembled remote rescue kit, designed for rescuing a suspended casualty from fall arrest lanyards, rope safety lines and fall arrest blocks.

The Gotcha kit is designed pre-assembled, and provides rescue for a single casualty, raising or lowering them to the nearest point of safety. The casualty is initially lifted to release their original attachment, eliminating the need for cutting and saving you money. The kit comes complete with an anchor sling, capable of attaching to a wide range of structures, and all terminations are sewed for security.

Made from anodised aluminium and stainless steel, the pack is lightweight and easily portable. The kit is colour coded for simplicity and includes an extension pole for delivery or the optional GRABBA for use with rope safety lines or fall arrest blocks. Gotcha is adaptable for different heights of anchor point, coming in four different sizes:

  • KIT8-50: 17m
  • KIT8-100: 34m
  • KIT8-150: 51m
  • KIT8-200: 68m
FABX1 – fall arrest block

FABX1 10m Xcalibre Fall Arrest Block options of wire rope, Vectran webbing and Dyneema.

  • Materials: composite mouldings UV stabilised, carbon steel black zinc plated, anodised aluminium, stainless steel and Vectran webbing
  • Dimensions: 244mm x 183mm x 144mm
  • Weights: Web 3.4kg, Dyneema 3.75kg and Wire 4.11kg
  • Capacity: up to 10m, max 8m on webbing
  • Brake lock on distance: 200mm nominal
  • Connectors: Complete with alloy swivel load indicator twist lock karabiner on life line, and 11mm alloy twist lock on device other connectors available on request
  • Arrest force: Web circa 3.2kN, Dyneema circa 3kN and Wire circa 3.5kN
  • Total Arrest distance: 1.6m
  • Max user weight: 136kg
11MM KERNMANTLE STATIC ROPE

11mm Kernmantle Static Rope
Made In South-africa
Static Rope Is Used In The Industrial And Rescue Industries Due To The Extreme Low Stretch Which Ensures Safety And Make Precision Work Possible .
Elongation (50kg – 150kg ) 2.5%
Outer Made From Polyester And The Core From Polyamide ( Nylon )
Available In 50m / 100m / 200m Lengths
Breaking Load 22kn
Weight 85g/m
Standard En 1891 : 1998 / Ce

Rope available in various colours.
